In the global field of biomass resource utilization, biochar demonstrates remarkable “situational adaptability.” Ranging from the decentralized waste management of remote forest regions to large-scale, industrialized carbon removal projects, a single technological model is no longer sufficient to meet diverse commercial demands. This trend is driving the evolution of biochar production equipment toward greater differentiation and specialization. This article introduces the mainstream commercial biochar production equipment currently available on the market, examined across four key dimensions, to assist industry practitioners in selecting the equipment best suited to their specific needs.
Classification by Biochar Production Process

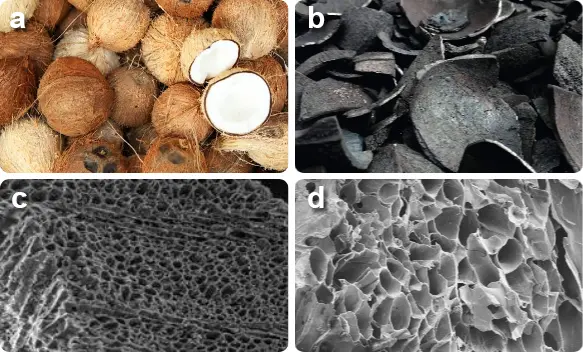

Slow Pyrolysis
Slow pyrolysis now is the most technologically mature and widely adopted commercial dry-process pathway in the global biochar industry.
- Technical Features: Low to medium temperature (350–600°C), low heating rate, long residence time (30 mins to several hours)
- Biochar Properties: High yield (25%–35% of dry feedstock), intact carbon framework, high porosity, low , and exceptional chemical stability.
- Biochar Application Value: Primarily utilized for the production of high-quality agricultural biochar and for long-term carbon sequestration.

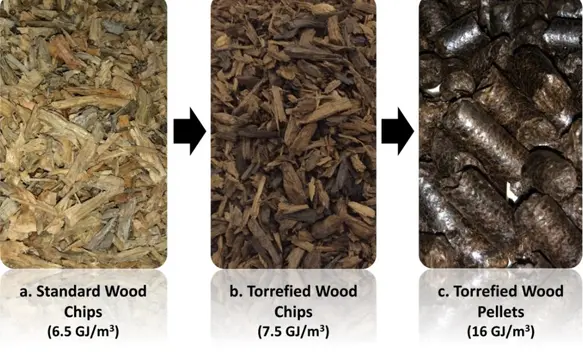

Torrefaction
Torrefaction is mild pyrolysis of biomass, aimed at improving fuel quality, energy density, and storage and transport efficiency.
- Technical Conditions: Low temperature (200–300°C), oxygen‑deficient / oxygen‑free atmosphere, low heating rate (<50°C/min)
- Biochar Properties: High energy density and calorific value; retains >90% of feedstock energy; goog grindability and hydrophobicity
- Biochar Application Value: Primarily used for co-firing in coal-fired power plants and as a sustainable alternative fuel for industrial boilers.

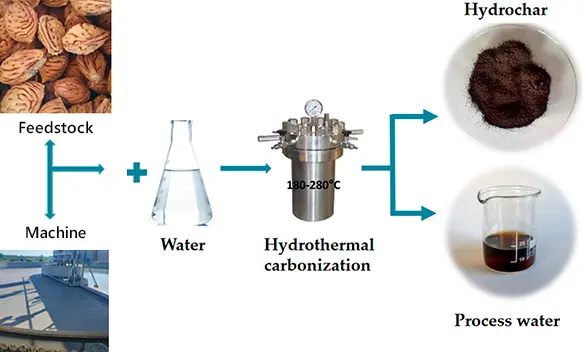

Hydrothermal Carbonization (HTC)
Hydrothermal carbonization is unaffected by high feedstock moisture content, making it ideal for treating high-moisture wastes such as sewage sludge, food waste and algae.
- Technical Features: Reaction temperature 180–250°C, water as reaction medium, saturated steam pressure of 2–4 MPa in a sealed reactor
- Hydrochar Properties: Abundant oxygen-containing functional groups (hydroxyl, carboxyl, etc.) and excellent cation exchange capacity (CEC)
- Hydrochar Application Value: Demonstrates outstanding performance in heavy metal adsorption, the production of specialty fertilizers, and as a green substitute for industrial fuels.

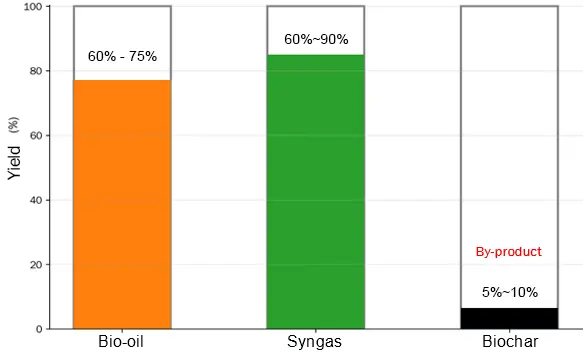

Other Pathways
Fast pyrolysis and gasification also produce small amounts of biochar, but biochar is not as the target product.
These processes focus on maximizing bio-oil or syngas production, using extremely high heating rates or high temperatures above 700°C.
Under such conditions, biochar yield is very low (typically only 5%–10%). Due to intense reaction conditions, the resulting biochar has poor pore structure and low chemical stability, failing to meet commercial biochar application standards. Thus, these are not regarded as mainstream routes for dedicated biochar production.
Classification by Operation Mode: Continuous vs. Batch

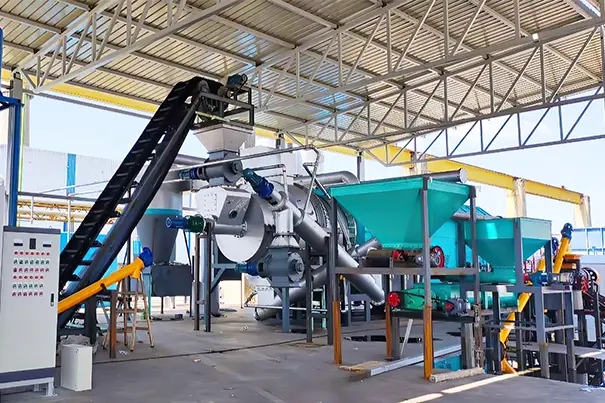

Continuous Biochar Production Machine
- Operation Mode: Continuous feeding and discharging, with raw materials passing through the reactor at a constant speed without shutdown.
- Core Advantages: 24-hour continuous operation, precise temperature control via PLC, consistent product quality.

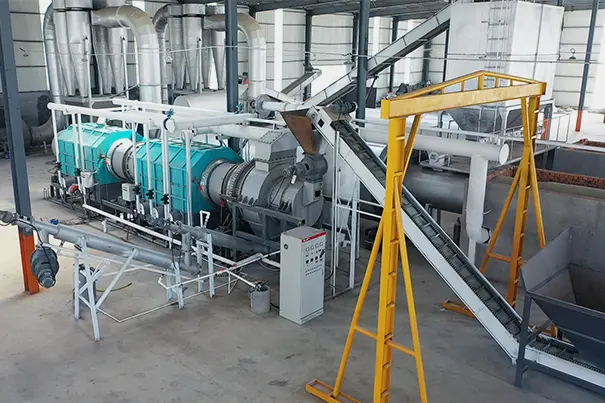

- Market Position: A prerequisite for high-end carbon credits, supports carbon footprint traceability, suitable for large-scale production.

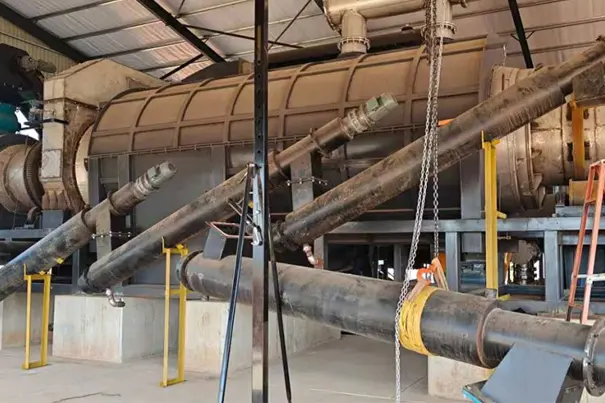

Batch Biochar Production Machine
- Operation Mode: Single-cycle operation including “charging – heating – carbonization – cooling – discharging”, with a cycle time of 8–12 hours per batch.
- Core Features: Simple structure and low investment; high heat loss, uneven carbonization, and difficult syngas recovery.
- Market Position: Gradually being replaced by continuous systems due to stricter environmental policies.

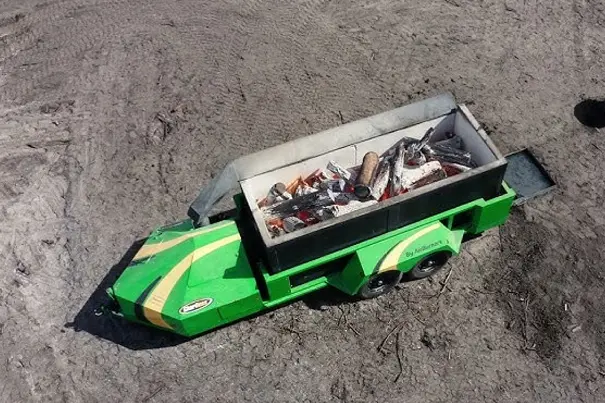

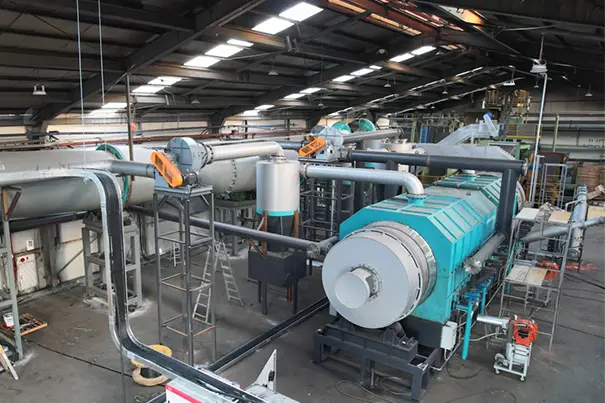

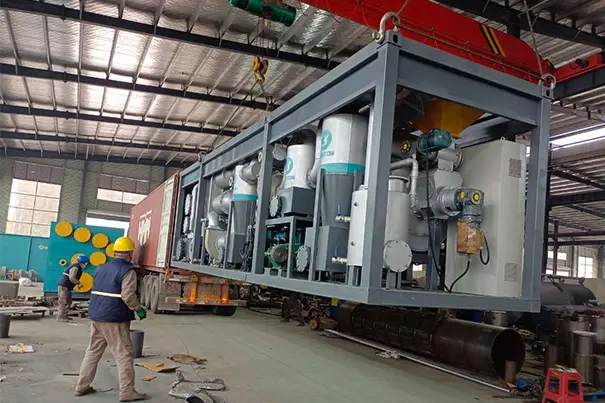

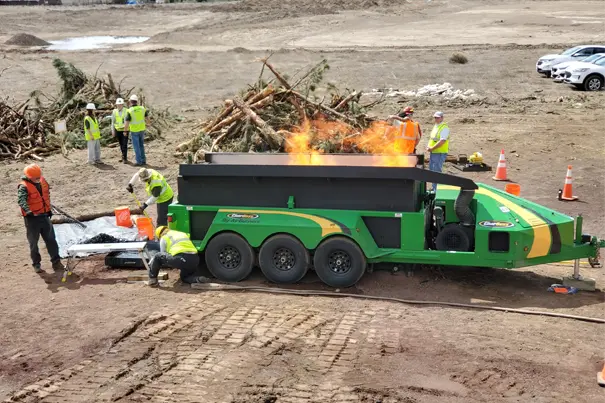

Classification by Deployment: Fixed vs. Mobile
