Oil Sludge Treatment Pyrolysis Plant

As we know, the greatest thing with oil sludge is that it is made up of crude oil which can be easily refined and processed into useful oil components. If you want to start an oil sludge pyrolysis plant to dispose oil sludge and make money, China Beston is the best choice for you. We offer the high-quality and most reliable oil sludge treatment plant which includes various features and benefits.

Oil Sludge Pyrolysis Plant

Where Does Oil Sludge Come from?

The petroleum industry is one of the primary sectors of economic activity, but it is also one of the areas with significant negative environmental impacts. In the petroleum industry, a substantial amount of oil waste, commonly referred to as oil sludge, is generated. Oil sludge is typically produced during various processes, such as oil well construction, petroleum refining, and equipment cleaning. It contains combustible components with a high calorific value, making it highly valuable for recovery.

Oil Field Exploitation and Waste Oil Sludge

Why Choose Pyrolysis Technology for Oil Sludge Treatment?

Compared to traditional methods for handling oil sludge, pyrolysis technology offers significant advantages. It boasts high efficiency, low pollution, and resource recovery, addressing the shortcomings of environmental pollution and energy wastage in traditional processes. Pyrolysis technology involves the high-temperature decomposition of organic compounds in oil sludge, converting them into useful energy or chemicals. Moreover, it minimizes waste generation, potentially offering new possibilities for environmental protection and resource utilization.

High-temperature Pyrolysis of Oil Sludge

How Oil Sludge Pyrolysis Plant Convert Oil Sludge into Value?

Through high-temperature pyrolysis technology, valuable fuel oil, sand, and water can be obtained. Here’s a brief overview of this pyrolysis process:

1. Transport of oily sludge

Use an automatic screw feeder to feed oil sludge into the pyrolysis reactor.

2. Heat pyrolysis reactor

Start the combustion chamber to heat the main reactor.

3. Pyrolysis reaction

Under an oxygen-free, high-temperature(200℃-450℃), and sealed environment, the three main components of oil sludge, oil, sludge, and water, will be decomposed. It mainly produces three types of substances, namely crude oil, and non-condensable syngas.

4. Oil and gas condensation separation

The generated oil gas enters the condensation system through a manifold. Heavy particulates in the gas are liquefied into heavy oil and then collected in a sludge tank. Lighter particulates are liquefied into light oil, and collected in the oil storage tank. Non-condensable syngas return to the combustion system after water cooling, providing heat for the reactor.

5. Solid residue discharge

Solid sand residue produced during oil sludge pyrolysis is discharged after cooling and heat exchange.

6. Flue gas treatment

After desulfurization, dust removal, and cooling treatment, the flue gas generated in the combustion chamber meets the emission standards.

Oil Sludge Pyrolysis Process

Final Product of Oil Sludge Pyrolysis

The final products of oil sludge pyrolysis typically include pyrolysis oil, recovered sand, and water. Pyrolysis oil and water each account for about 12.5%, while the remaining 72.5% is sand. This is a general estimate. These proportions can vary based on the specific composition of the oil sludge and the pyrolysis conditions.

Final Product of Oil Sludge Pyrolysis

Technical Parameter of Beston Oil Sludge Treatment Plant for Sale

Beston oil sludge pyrolysis plant is primarily designed for converting various types of oily sludge waste into pyrolysis oil. Beston Group provides four distinct models, each with varying working methods and capacities. These models include the skid-mounted type, batch type, semi-continuous type, and continuous type. You can refer to their respective specifications for more details.

BLJ-3 Oil Sludge Pyrolysis Plant
BLJ-3
BLJ-6&10 Oil Sludge Treatment Plant
BLJ-6&10
BLJ-16 Pyrolysis Plant for Oil Sludge
BLJ-16

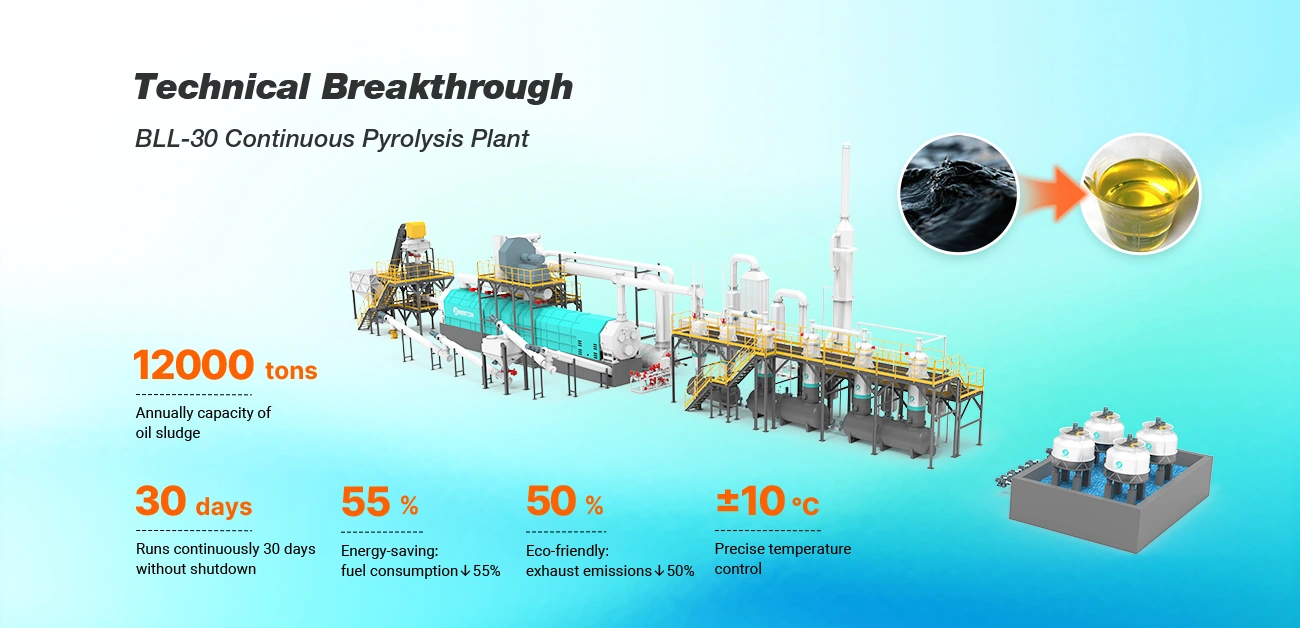

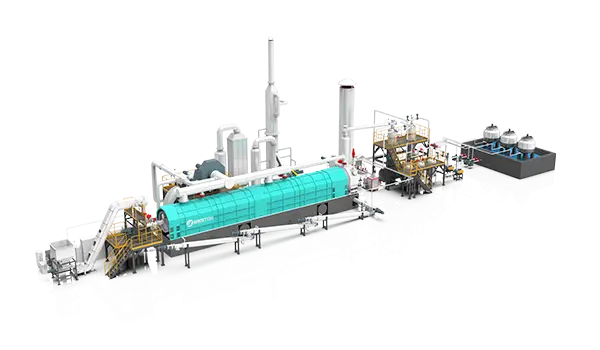

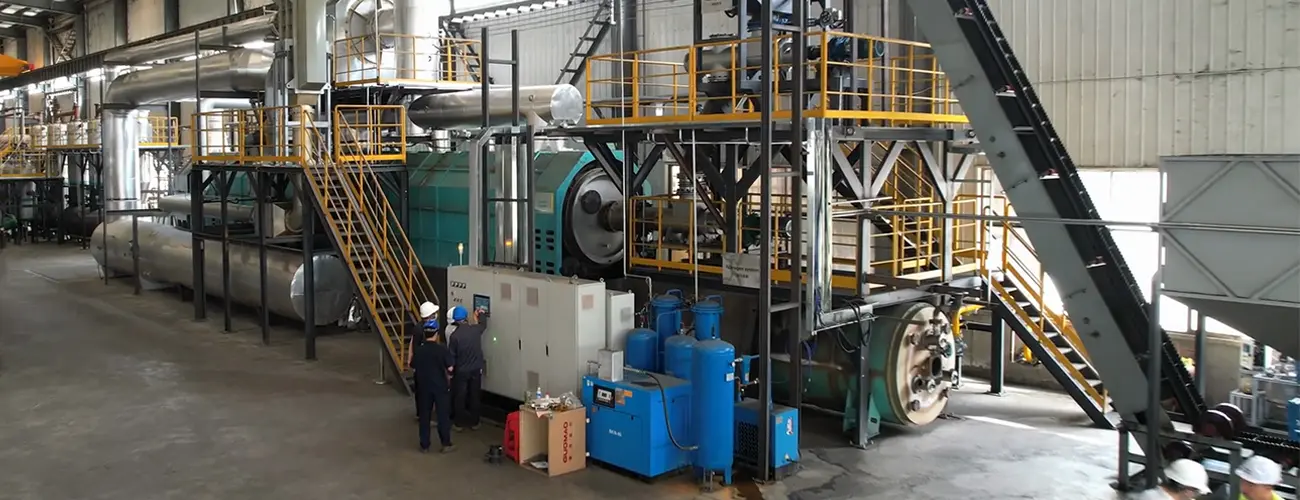

BLL-30 Sludge Oil Pyrolysis Plant
BLL-30
ModelBLJ-3BLJ-6BLJ-10BLJ-16BLL-16BLL-30
Capacity1-3t/d4-6t/d8-10t/d12-16t/d8t/d (only for rubber powder)30-35t/d
Working ProcessBatchBatchBatchBatchSemi-continuousFully continuous
Reactor Sizeφ1400*4900mmφ2200*6000mmφ2600*6600mmφ2800*7100mmφ2800*7100mmφ1800*18500mm
Reactor MaterialQ345RQ345RQ345RQ345RQ345R310S stainless steel
Drive System350 reducer+4kw drive motor400 reducer+5.5kw drive motor400 reducer+5.5kw drive motor500 reducer+7.5kw drive motor500 reducer+7.5kw drive motorZQH650-50 reducer+15kw frequency conversion motor
Land (L*W*H)18m*4.2m*6m30m*12m*8m30m*13m*8m33m*13m*8m33m*13m*8m70m*20m*10m
Power16.65kw37.85kw44.3kw55.6kw55.6kw256kw
Burner2*200,000 kcal2*300,000 kcal2*300,000 kcal2*400,000 kcal2*400,000 kcal2.5 million kcal per set
Total Weight of Shipped MaterialsAbout 18tAbout 24.5tAbout 28tAbout 34.5tAbout 34.5tAbout 150t
Number of Containers1*40HQ1*40FR+1*40HQ+1*20 GP1*40FR+2*40HQ1*40FR+2*40HQ1*40FR+2*40HQ25m*8m bulk cargo+8*40HQ
Noise (dB)≤60≤60≤60≤60≤60≤60
Heating MaterialsFuel oil (including tyre/plastic pyrolysis oil), natural gas, LPG, diesel, etc.
Condensing SystemVertical Condenserφ426*3000
Single piece condensing area
7.58m2
φ630*3600
Single piece condensing area
17.8m2
φ630*3600
Single piece condensing area
17.8m2
φ820*3600
Single piece condensing area
35.6m2
φ820*3600
Single piece condensing area
35.6m2
φ920*3200
2 sets of vertical condenser
3-in-1 Condenser3000*2200*2250
Condensing area
17.51m2
5800*2260*2500
Condensing area
35.85m2
5800*2260*2500
Condensing area
35.85m2
8000*2260*2500
Condensing area
49.5m2
8000*2260*2500
Condensing area
49.5m2

Comparison of Different Operations of Batch/Continuous Type

Oil Sludge pyrolysis plant comes in two primary operational modes: batch and continuous type. Each has its advantages and is suitable for different applications. Please select the right equipment based on the specific requirements and available resources of the project.

Batch Oil Sludge Pyrolysis Plant
Batch operation
  • Relatively small processing capacity.
  • Ideal for small-scale or pilot projects.
  • Requires manual loading and unloading.
  • Well-suited for research and development purposes.

Continuous Oil Sludge Pyrolysis Plant
Continuous operation
  • High processing capacity.
  • Designed for large-scale processing.
  • Continuous feeding and discharging of materials.
  • Requires less labor and offers consistent output.

Note: The skid-mounded BLJ-3 model is a special batch type machine with high mobility. Nearly 90% of its installation work is completed before leaving factory.

Featured Design Of Beston Oil Sludge Treatment System

Beston oily sludge treatment system includes several high-quality and purpose-ordained features. The features have been tested and proven to be the ultimate choice for such a pyrolysis plant for that you are sure to enjoy maximum productivity and efficiency when using it. The key features of the Beston oil sludge treatment pyrolysis plant include:

  • Syn gas filtering and cleaning, make sure the assist gas burners running efficiently and safely, saving fuel cost.
  • An automatic feeding system that helps reduce extra manual operations and enhances the machine’s productivity.
  • Bilayer explosion-proof valve, emergency pressure releasing tube on the top, pressure gauge, and an automatic warning device
    are components of security guarantees.
  • Effective exhaust gas and waste water processing and releasing systems. This ensures all the used gas and water waste are emitted in the desirable state so that it won’t harm the atmosphere.

Parts Navigation View for Your Reference

An oil sludge pyrolysis plant typically includes the following key components: feeding system, pyrolysis reactor, heating system, condensation system, oil-gas separator, exhaust gas cleaning system, and a control system. Please see the parts navigation view.

BLJ-16 with Three in One Condenser
BLJ-16 with Three in One Condenser

Possible Profit Sources from Oil Sludge Pyrolysis

Profit from regenerated pyrolysis oil

After processing the oil sludge, the resulting regenerated oil, when blended, can be sold to fuel distributors or refineries. This product is well-received in the market, leading to significant economic benefits.

Profit from sand

The solid sand waste generated from oil sludge processing can either be used for landfill or sold to brick factories for brick production. Alternatively, it can also be sold to oil field companies as a wellbore stabilizer.

Economic support from petroleum sector’s subsidies

Due to the significant hazards and environmental pollution associated with oil sludge, the petroleum sector provides substantial financial support for the thermal cracking treatment of oil sludge. Once the industrial park obtains the necessary environmental qualifications from government agencies, for each ton of oil sludge processed, the petroleum sector will offer a specific subsidy, which is determined based on the current conditions.

Oil Sludge Pyrolysis Plant Environmental Benefits

Oil sludge pyrolysis plants not only offer potential profit opportunities but also provide significant environmental benefits. It is a more sustainable and eco-friendly option compared to traditional treatment methods. Here are some of the key environmental benefits of using pyrolysis technology in oil sludge treatment:

Reduction of Waste

Pyrolysis technology can significantly reduce the volume of oil sludge by breaking down organic materials into valuable products such as oil, gas, and char. This reduces the amount of waste that needs to be disposed of in landfills or incinerated, ultimately decreasing the environmental impact.

Soil and Water Contamination Prevention

Traditional methods of oil sludge disposal can result in soil and water contamination due to leakage and improper handling. Pyrolysis technology minimizes the risk of contamination by efficiently processing the sludge and recovering valuable components.

Resource Recovery

he plant converts oil sludge, a waste product, into valuable resources, including crude oil and natural gas. This minimizes the need for extracting new fossil fuels, leading to a reduced environmental impact associated with drilling and extraction.

Optional Auxiliary Equipment – Waste Oil Distillation Plant

In order to obtain fuel oil with higher market value, it is recommended to use oil distillation equipment for oil processing. By this, you can get refined oil of higher quality and better price.

Oil Distillation Plant BZJ-6

Choose Beston Group – Experienced in Oil Sludge Recovery Industry

Since being established in 2013, Beston Group has been devoted to the pursuit of effective waste treatment solutions (oil sludge, waste tires, waste plastics, etc.). We are committed to a customer-centric approach, striving to provide comprehensive waste recycling solutions to our clients. After years of hard work, we have become a trusted provider of solutions for waste recycling. We have successfully partnered with clients from around the world and look forward to collaborating with even more in the future.

Industry position
  • top 3 in the industry;
  • 10+ years of manufacturing experience;
  • 15+ patented technologies.
Company strength
  • 20 senior engineers;
  • 30+ senior project consultants;
  • 20,000㎡ factory space and a 2,400㎡ office area.
Oversea market
  • 7 overseas branches and offices;
  • 10+ successful cases in the oil sludge treatment field;
  • 100+ successful cases in the waste recycling field.
