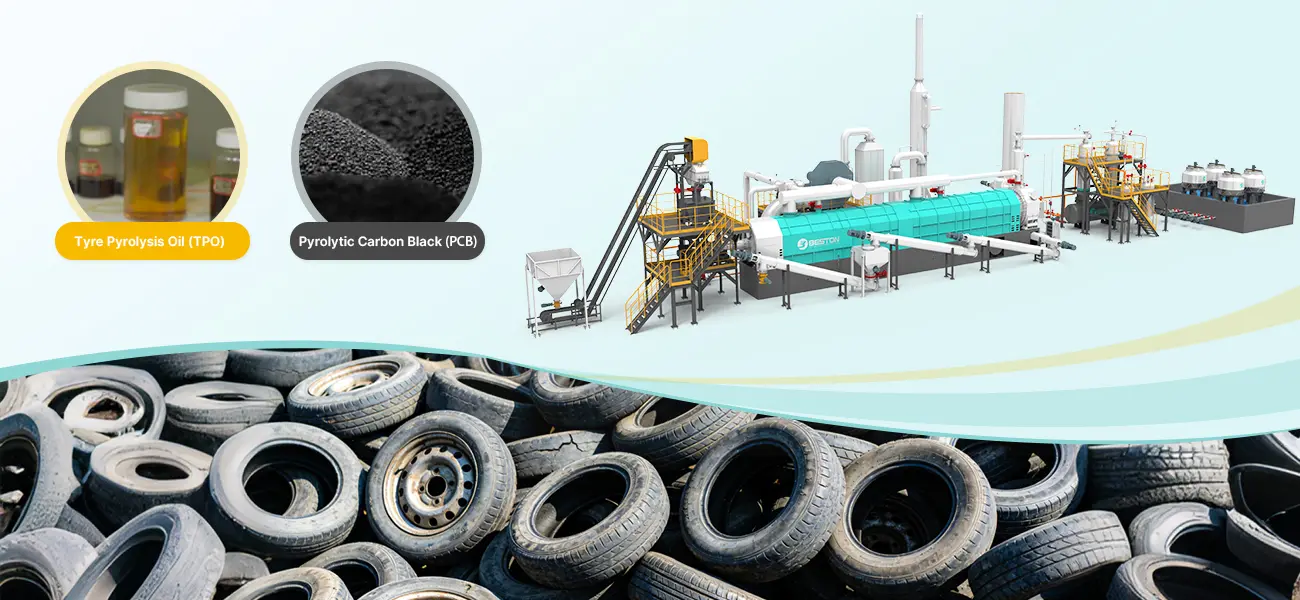

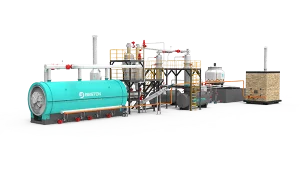

Waste Tyre Pyrolysis Plant

Waste tyre pyrolysis plant is a kind of eco-friendly machine that is used to dispose of waste tyres. You can get pyrolysis oil, carbon black, and steel wire through pyrolyzing waste tires. Currently, large amounts of scrap tyres are urgent for being handled. Dealing with waste tyres stacking problem in an eco-friendly and profitable method is becoming more popular. Therefore, more and more customers choose to purchase tire pyrolysis plant from Beston.

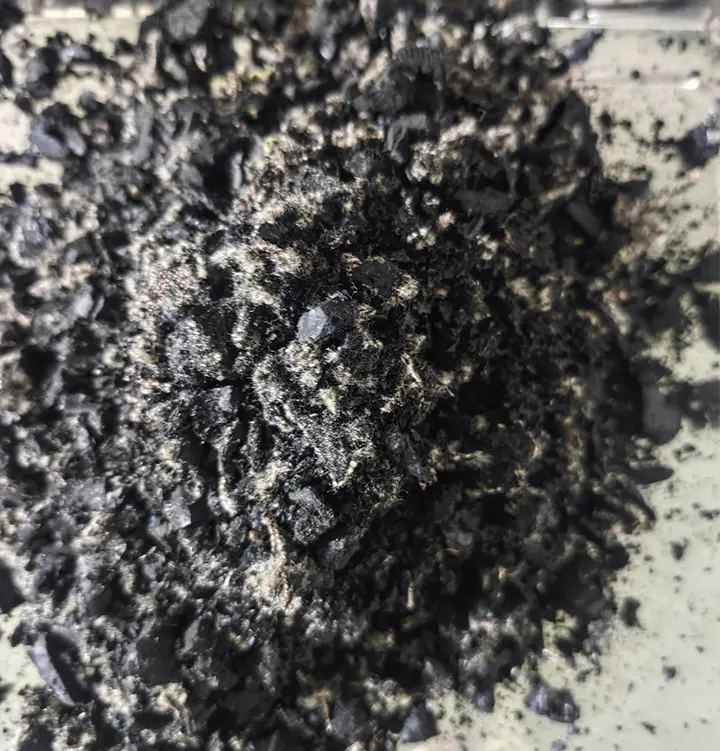

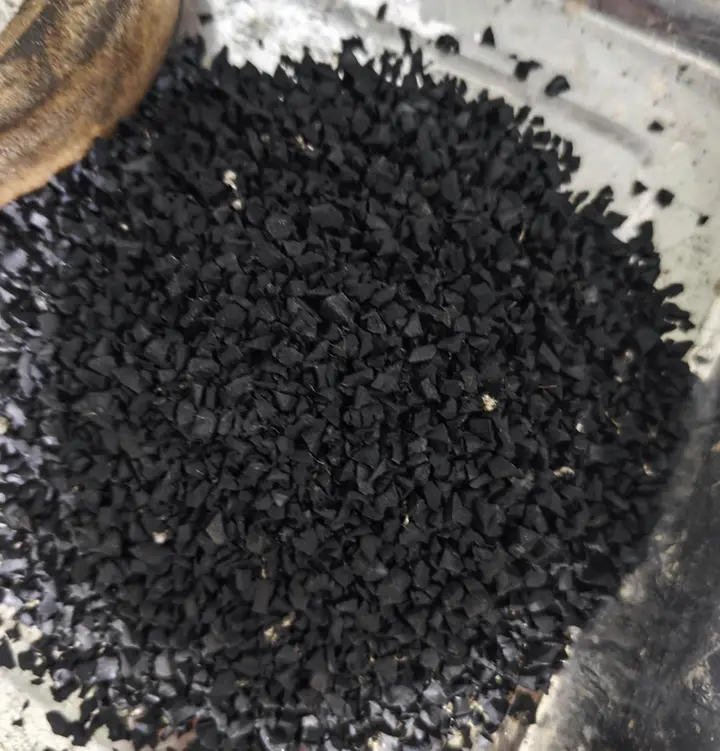

End Products and Wide Applications:

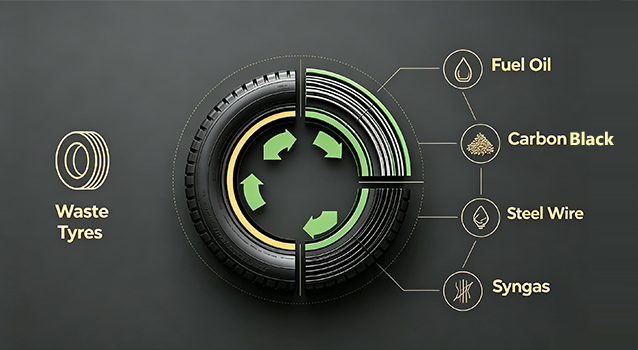

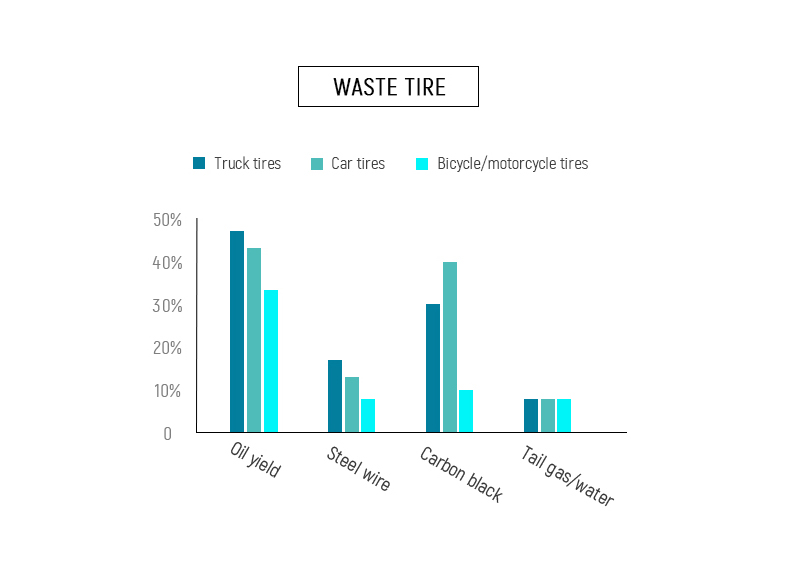

Pyrolysis oil, carbon black, steel wire, and combustible gas are the main end products when you use a tire pyrolysis plant to deal with waste tires. When you get these final products, you can use them to gain large profits through selling and use. Welcome to get see the following table to know clearly with the applications of end products now. Interested? Get the tyre pyrolysis plant price now!

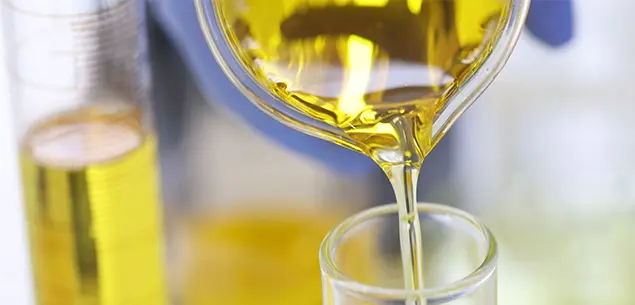

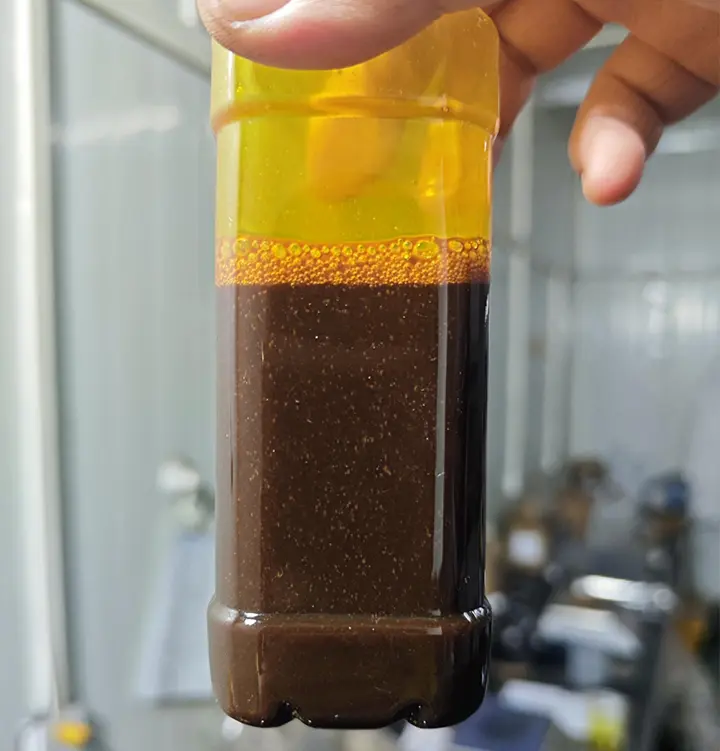

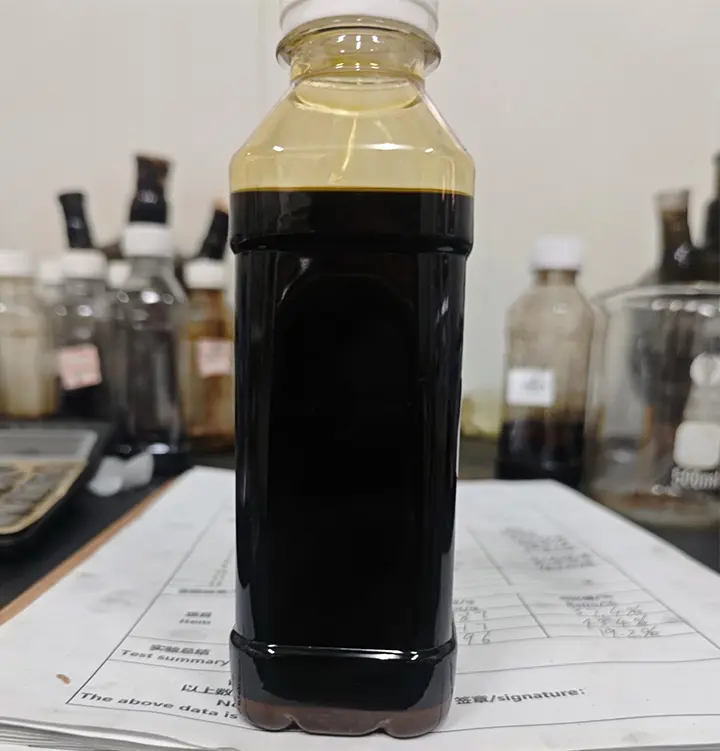

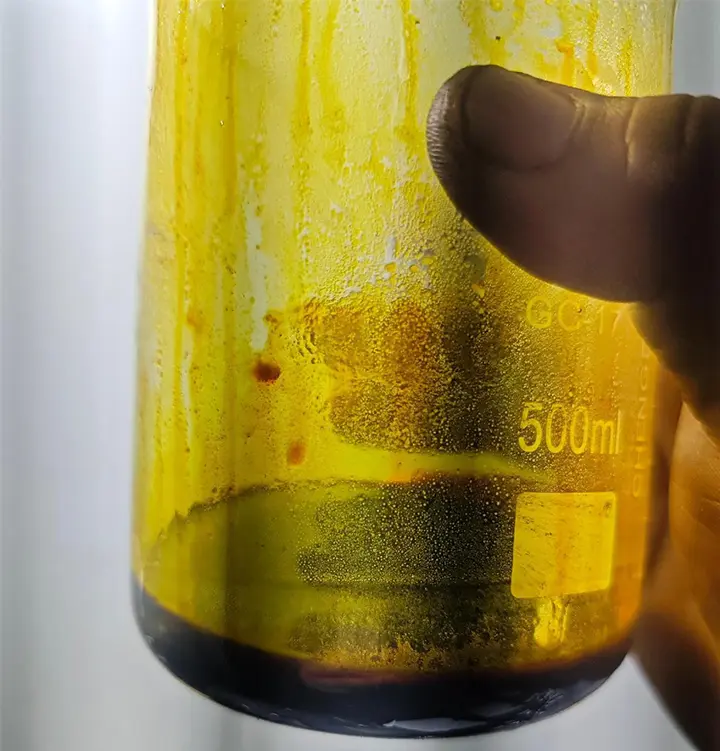

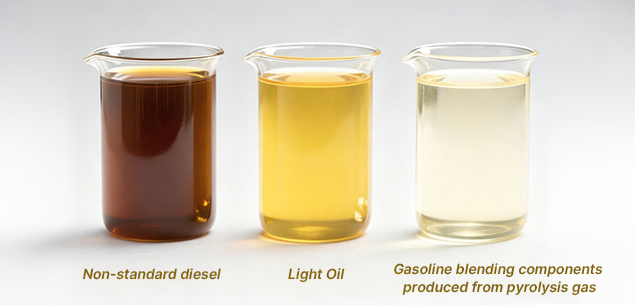

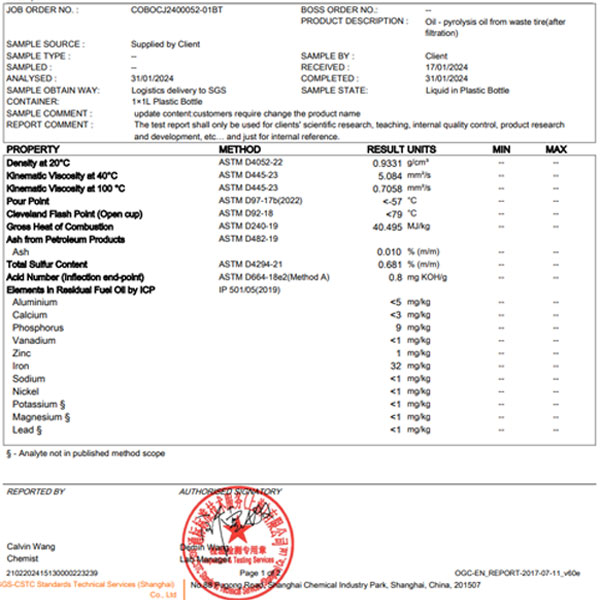

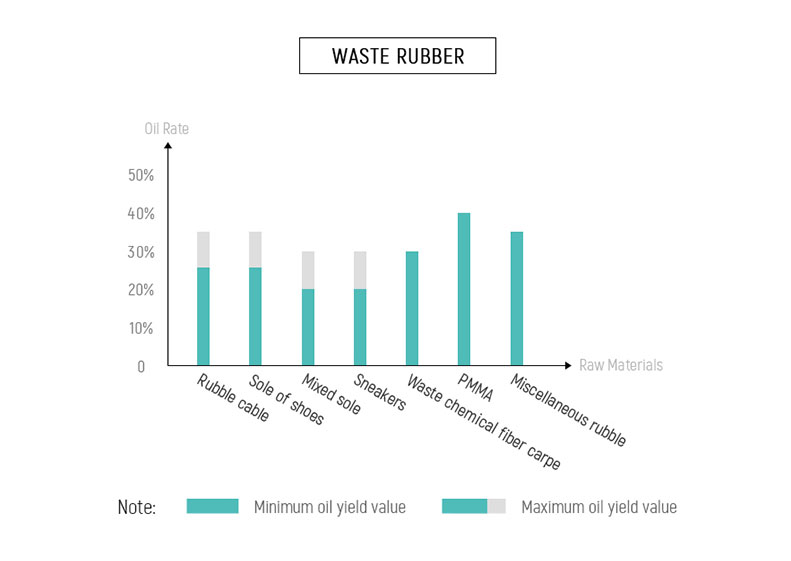

Pyrolysis Oil
Pyrolysis Oil

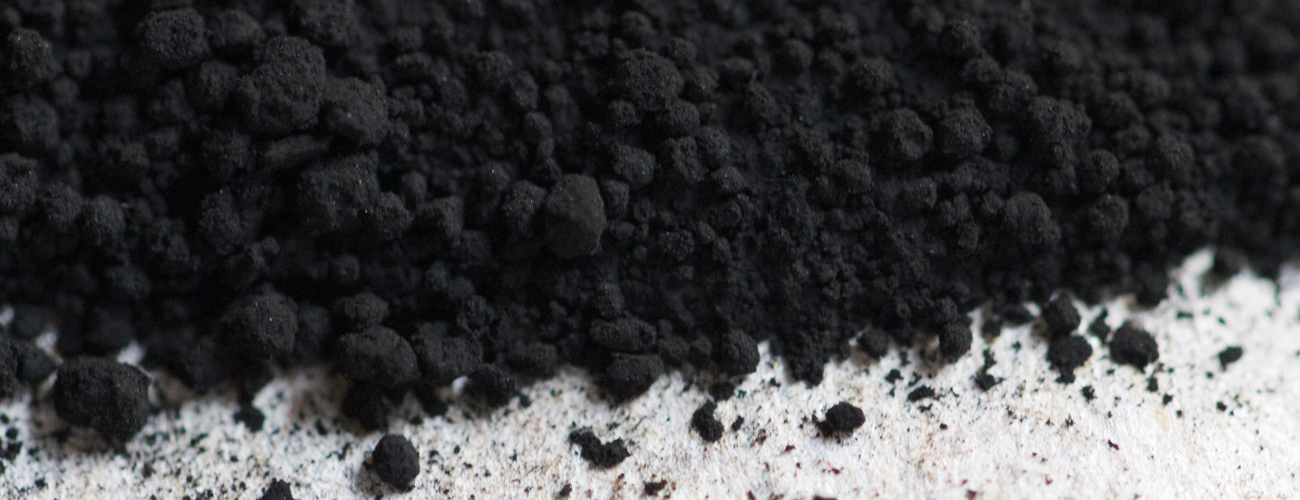

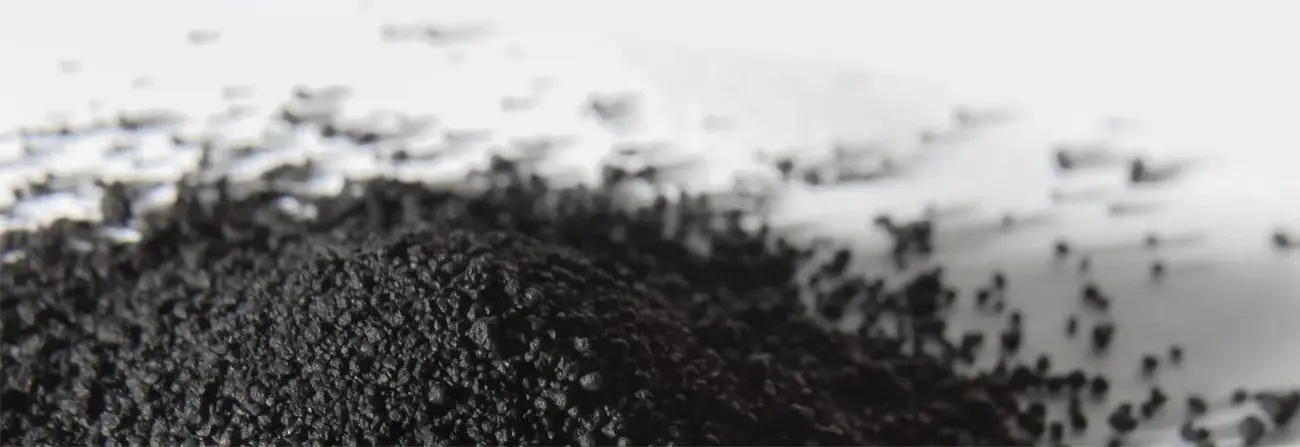

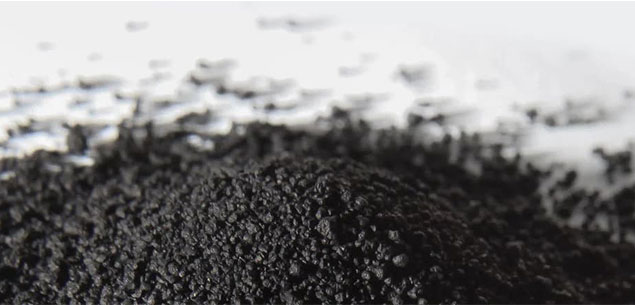

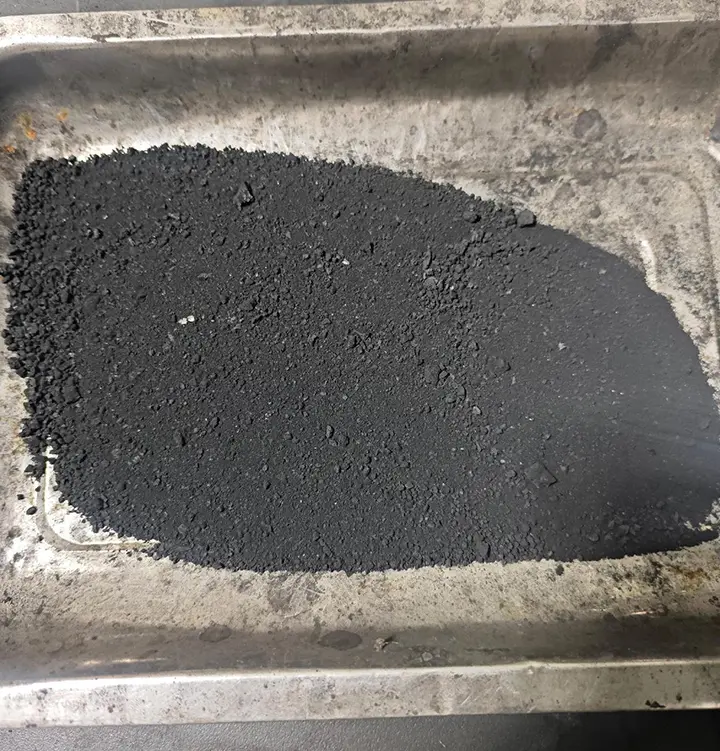

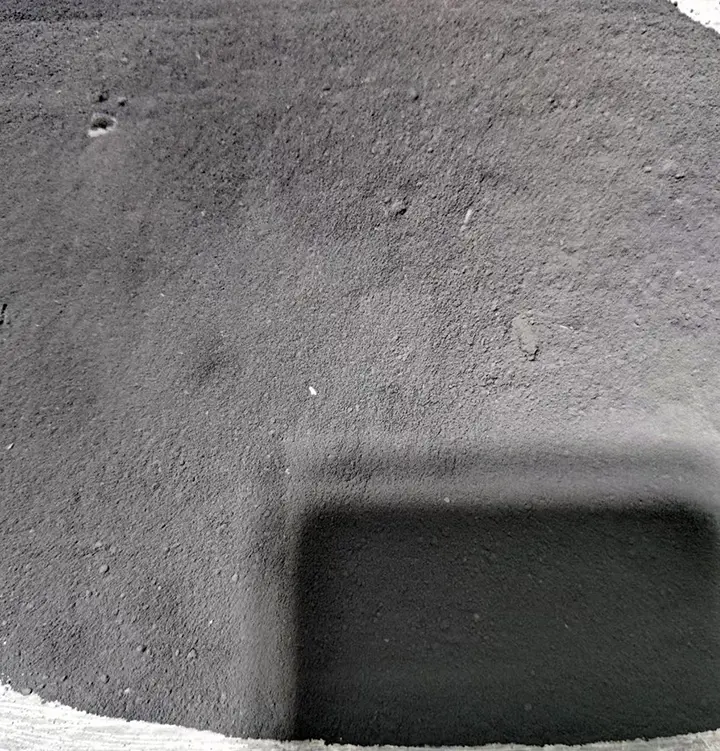

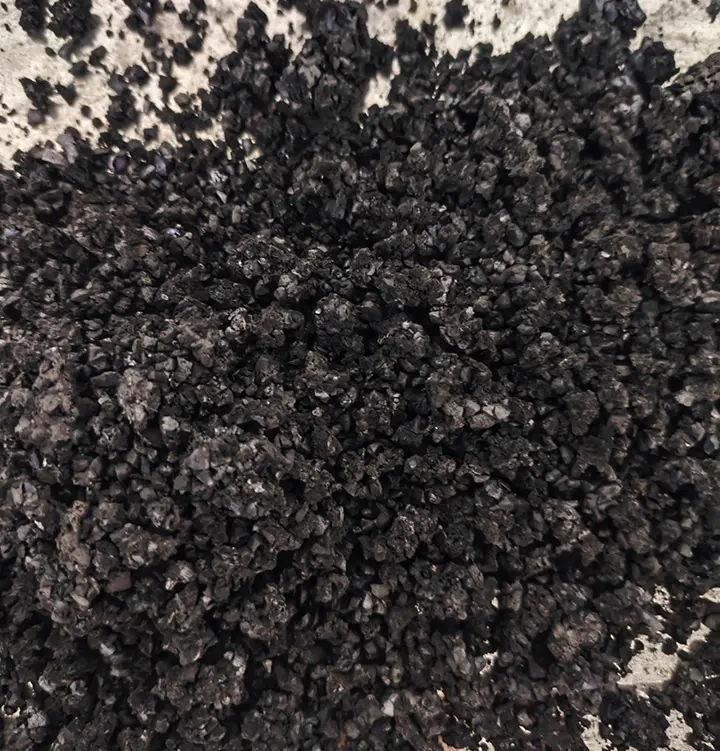

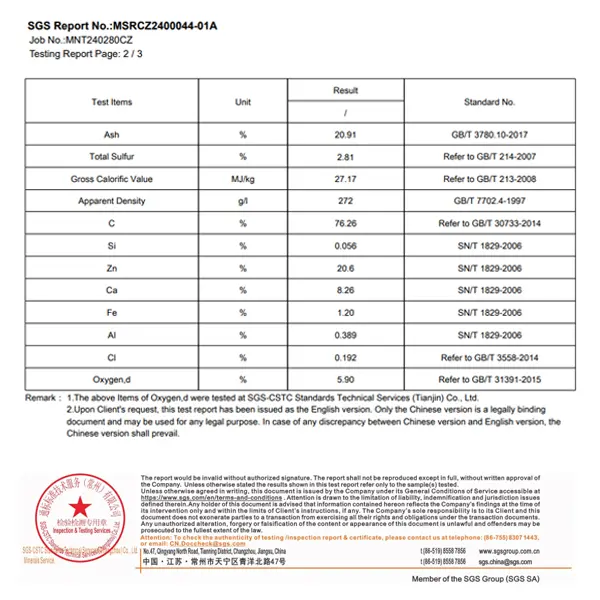

Carbon Black
Carbon Black

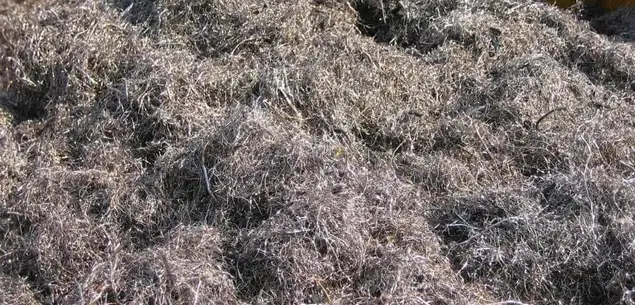

Steel Wire
Steel Wire
Combustible Gas
Combustible Gas
End ProductsProportionWide Applications
Pyrolysis oil35-45%Can be sold directly.
Reprocessed into diesel and gasoline by waste oil distillation machine.
Can be used as industrial fuel materials for burning in cement mills, power stations, chemical factories, steel mills.
Carbon black30-35%Can be sold directly.
A raw material to make bricks and asphalt modifiers.
A raw material used in ink, paint, and coating production.
Steel wire8-15%Can be sold directly.
Can be reprocessed or used to make steel and iron rod.
Syngas8-15%Can be recycled as fuel to heat the reactor.

6 Choices of Beston Waste Tyre Pyrolysis Plant For Sale

In order to satisfy various customers’ requirements, we offer 6 models of waste tire pyrolysis plant: BLJ-3, BLJ-6, BLJ-10, BLJ-16, BLL-16, and BLL-30. Choose what you need now!

  • BLJ-3: This is a mobile skid-mounted model with a modular design. It is almost 90% pre-installed in the factory, allowing for immediate use upon unloading. It is ideal for small-scale business investors due to its smaller capacity.
  • BLJ-6/10/16: These are our best-selling models designed for small to medium-scale business projects. They are a great choice when there are budget or space constraints.
  • BLL-30: This is our largest capacity machine capable of continuous operation. It is well-suited for large-scale business projects.
BLJ-3 Model
BLJ-3 Model

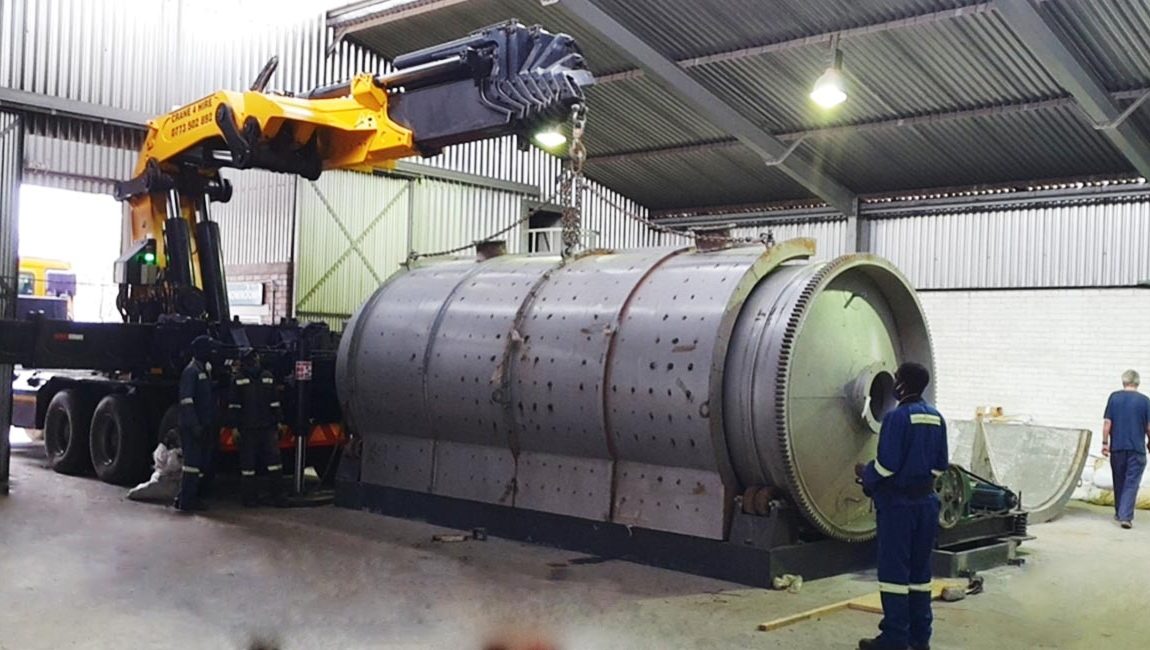

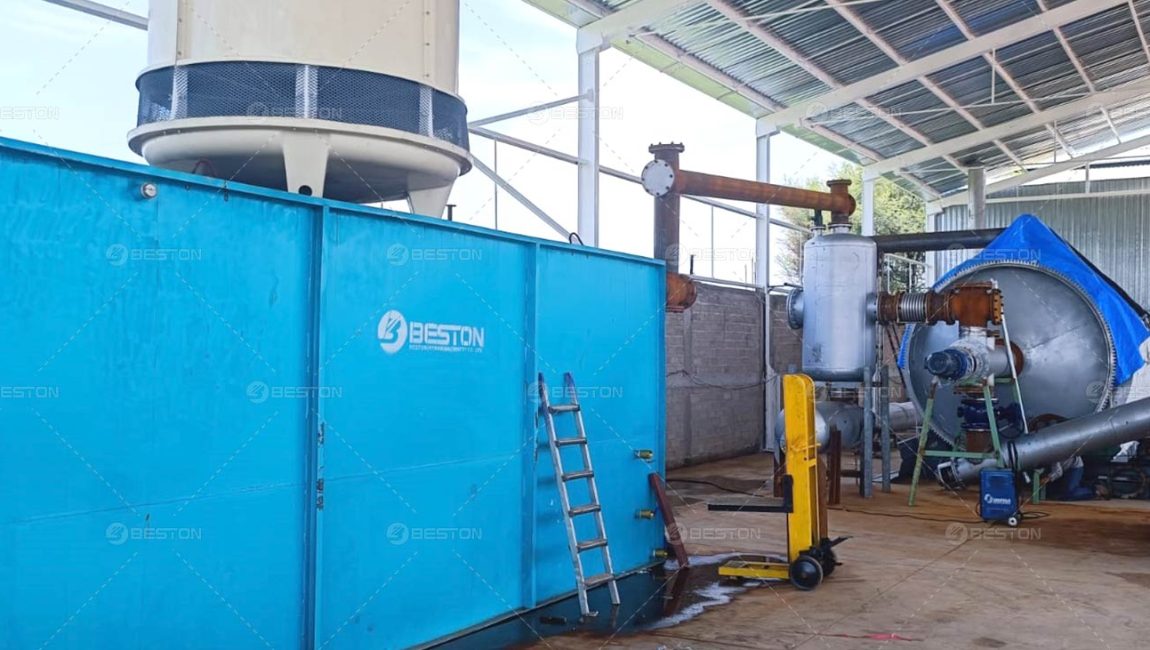

BLJ-6 and BLJ-10 Model
BLJ-6 and BLJ-10 Model

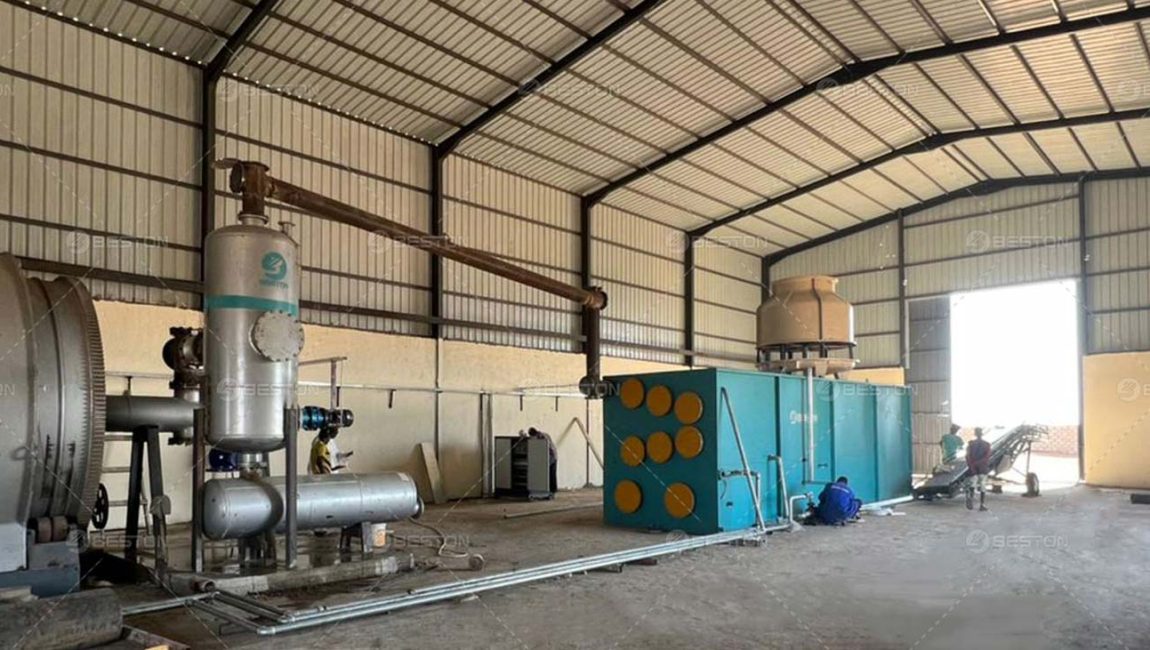

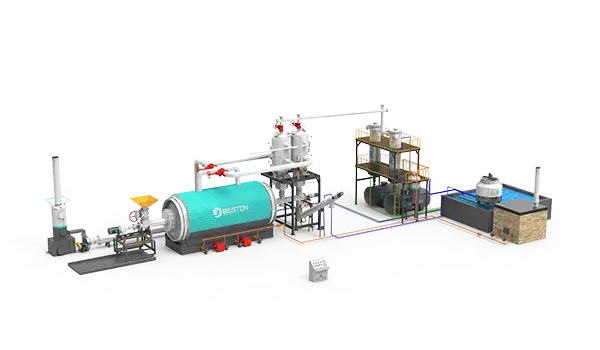

BLJ-16 Model
BLJ-16 Model

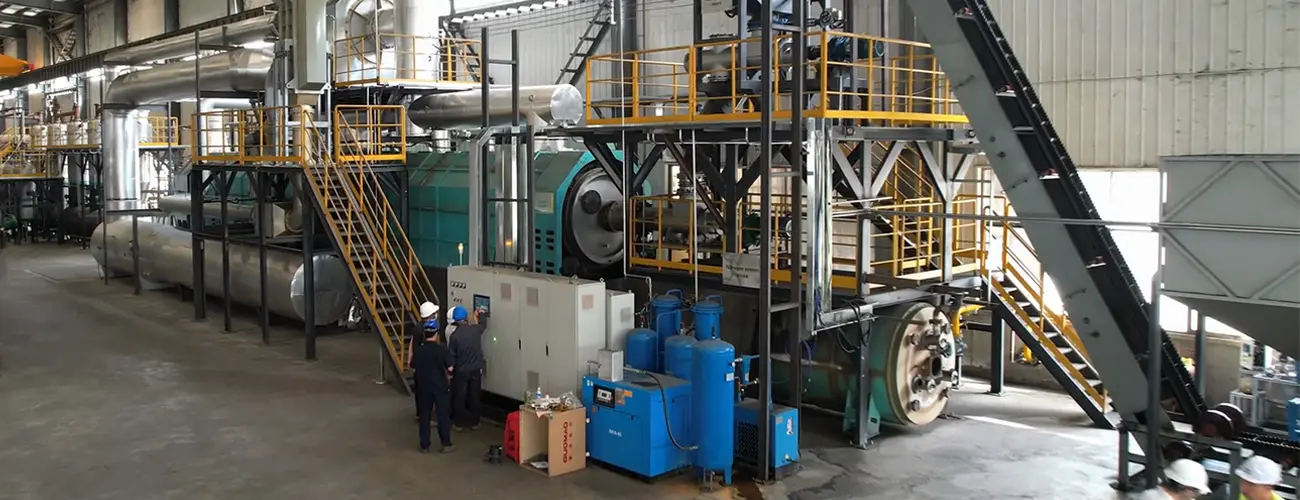

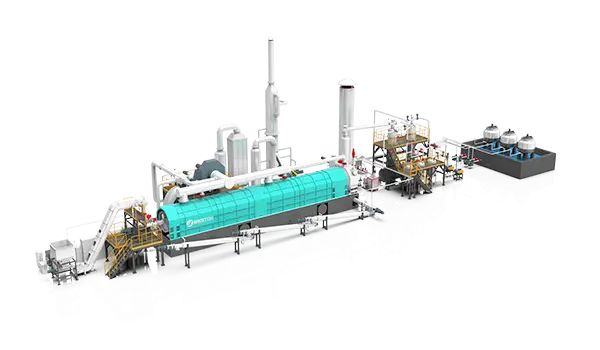

BLL-30 Model
BLL-30 Model

ModelBLJ-3BLJ-6BLJ-10BLJ-16BLL-16BLL-30
Capacity1-3t/d4-6t/d8-10t/d12-16t/d8t/d (only for rubber powder)30-35t/d
Working ProcessBatchBatchBatchBatchSemi-continuousFully continuous
Reactor Sizeφ1400*4900mmφ2200*6000mmφ2600*6600mmφ2800*7100mmφ2800*7100mmφ1800*18500mm
Reactor MaterialQ245RQ245RQ245RQ245RQ245R310S stainless steel
Drive System350 reducer+4kw drive motor400 reducer+5.5kw drive motor400 reducer+5.5kw drive motor500 reducer+7.5kw drive motor500 reducer+7.5kw drive motorZQH650-50 reducer+15kw frequency conversion motor
Land (L*W*H)18m*4.2m*6m30m*12m*8m30m*13m*8m33m*13m*8m33m*13m*8m70m*20m*10m
Power16.65kw37.85kw44.3kw55.6kw55.6kw256kw
Burner2*200,000 kcal2*300,000 kcal2*300,000 kcal2*400,000 kcal2*400,000 kcal2.5 million kcal per set
Total Weight of Shipped MaterialsAbout 18tAbout 24.5tAbout 28tAbout 34.5tAbout 34.5tAbout 150t
Number of Containers1*40HQ1*40FR+1*40HQ+1*20 GP1*40FR+2*40HQ1*40FR+2*40HQ1*40FR+2*40HQ25m*8m bulk cargo+8*40HQ
Noise (dB)≤60≤60≤60≤60≤60≤60
Heating MaterialsFuel oil (including tyre/plastic pyrolysis oil), natural gas, LPG, diesel, etc.
Condensing SystemVertical Condenserφ426*3000
Single piece condensing area
7.58m2
φ630*3600
Single piece condensing area
17.8m2
φ630*3600
Single piece condensing area
17.8m2
φ820*3600
Single piece condensing area
35.6m2
φ820*3600
Single piece condensing area
35.6m2
φ920*3200
2 sets of vertical condenser
3-in-1 Condenser3000*2200*2250
Condensing area
17.51m2
5800*2260*2500
Condensing area
35.85m2
5800*2260*2500
Condensing area
35.85m2
8000*2260*2500
Condensing area
49.5m2
8000*2260*2500
Condensing area
49.5m2

Working Processes of Beston Tyre Pyrolysis Machine for Sale:

Beston scrap tyre pyrolysis plant takes advantage of advanced pyrolysis technology to convert waste tyres into useful resources. The following is a simple description of tyre pyrolysis process:

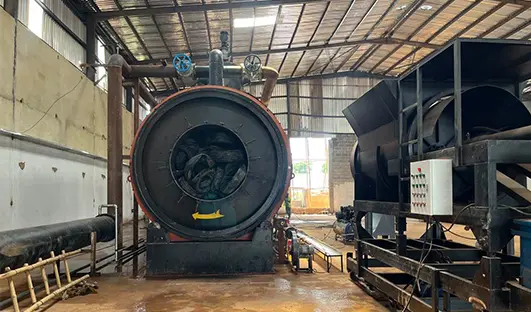

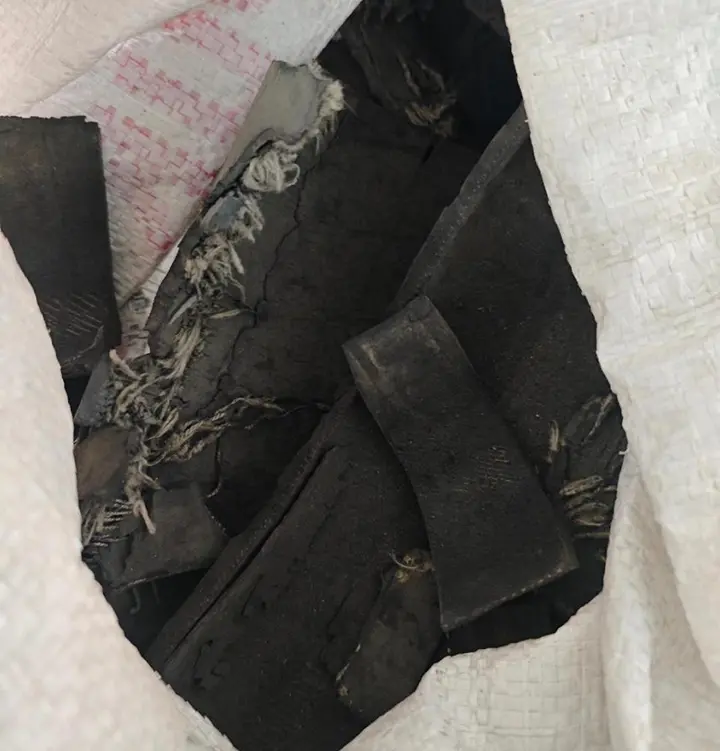

  • Feeding: Small chunks of tires that meet the feeding standards are transported to the pyrolysis furnace through a feeding machine (belt conveyor, hydraulic feeder, and automatic screw feeder).
  • Pyrolysis: The pyrolysis furnace is heated using the hot air discharged from the combustion chamber. When the temperature reaches 150°C and is maintained for 2 hours, oil and gas are generated and enter the manifold. Subsequently, heavy oil is collected in the heavy oil tank, while the light oil and gas rise and enter the condensation system.
  • Condensation: The oil and gas are liquefied into fuel in the condenser and enter the fuel tank. Combustible gases that cannot be liquefied at atmospheric pressure are treated and returned to the combustion chamber to provide heat.
  • Dust Removal: The hot flue gas discharged during the pyrolysis process enters the dust removal system after being cooled in the flue gas condenser. After dust removal treatments such as water washing, spraying, ceramic ring adsorption, and activated carbon adsorption, the gas emissions meet the standards.
  • Residue Removal (Discharging): After the oil extraction process is complete, the temperature in the reactor vessel will decrease. When the temperature drops to 40°C, the carbon black and steel wire are automatically or manually discharged.

Pyrolysis Flow Chart of Waste Tire

Differences Between Three Types of Beston Tyre Pyrolysis Plant:

It needs to be mentioned that BLJ-3, BLJ-6, and BLJ-10 are batch operating systems that belong to small tyre pyrolysis equipment; BLJ-16 is a semi-continuous system; BLL-20 is a fully continuous waste pyrolysis system. More detailed differences as below:

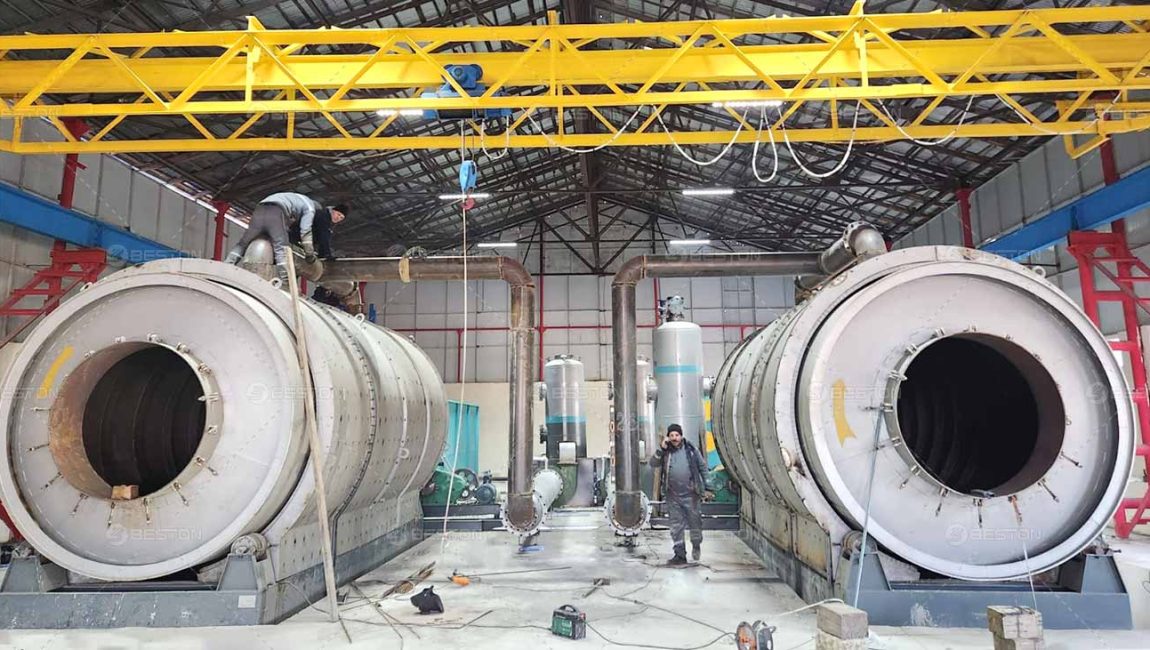

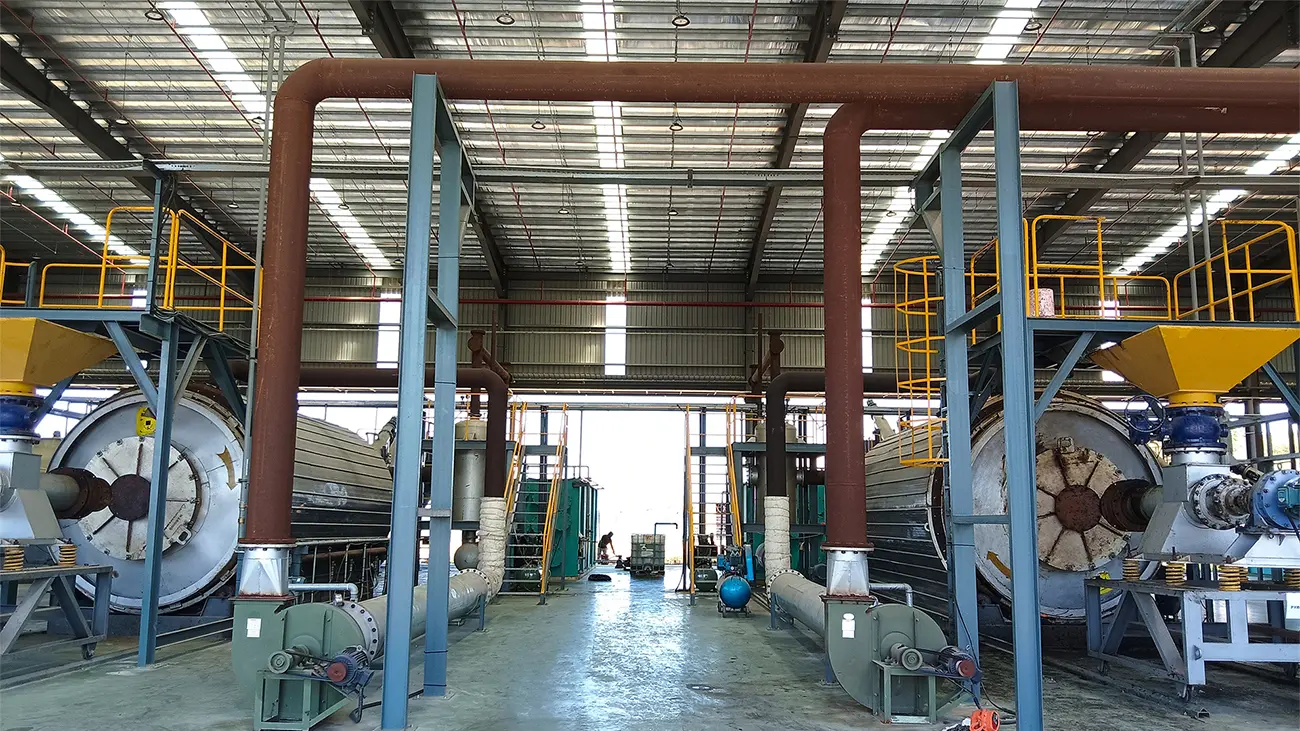

Waste Tyre Pyrolysis Plant
Waste Tyre Pyrolysis Plant

1. Automatic degree: Semi continuous pyrolysis plant and fully continuous system have an auto-feeder which can feed the materials into reactor automatically, while the batch system needs to feed materials by manual. Moreover, only the fully continuous system can achieve feeding raw materials on one side and discharging carbon black continuously on the other side.

2. Reactor Design: The reactor of fully continuous tyre pyrolysis plant is stable and not rotary. It makes the temperature rise and pyrolysis react quickly. This special design makes the whole pyrolysis process efficient and can also save much heating materials. While the reactors of batch and semi-continuous Beston tyre pyrolysis plant are 360-degree rotating. This special design makes the bottom of the reactor heat evenly, which lengthen the service life of the reactor as well as improve the pyrolysis speed.

3. Pre-treatment: For the semi-continuous and fully continuous scrap waste tires pyrolysis plant, before the tire pyrolysis process, the tires need to be cut into small pieces by a tire shredder machine for sale. If the materials’ humidity is higher than 15%, it also needs a dryer to dispose of the waste first. This pre-treatment step can make the pyrolysis process more efficient. While the batch system doesn’t need the pre-treatment.

4. Work time: Fully continuous system can work continuously for 24 hours per day without a stop and needn’t to be cooled before the second batch. The semi-continuous system can work 3-4 shifts per day, and it only needs one hour to cool the reactor before the second batch. The batch tyre pyrolysis machinery can only work one shift per day and need to 5-6 hours to cool the reactor.

Special Designs of Beston Tire Pyrolysis Plant:

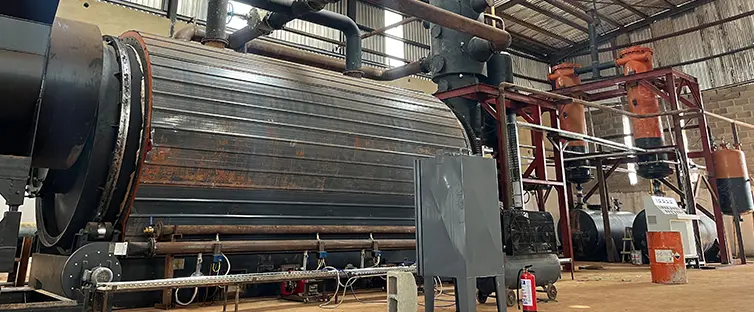

Reactor of tyre pyrolysis machine
Reactor of tyre pyrolysis machine
Reactor of waste tire pyrolysis machine

Reactor decides the service life and the safety of the machine. Beston tire pyrolysis plant has used a unique design that contains multiple reactors. One of the reactors is made of stainless steel which can prevent oil corrosion, while the others are made of Q245R boiler steel whose thickness is 16mm. The major function of the reactor is to heat the waste tire materials and turn them into oil gas. In addition, we also have designed a unique protecting device for rector-casing, which covers the outside of the reactor to reduce heat loss and protect workers from getting burnt. Therefore, the excellent design of the reactor can not only extend the service life of the whole set of plants, but also save much fuel energy to some extent.

Oil condenser system
Oil condenser system
Condenser system

The introduction of a tube-type oil condenser is a kind of equipment with the biggest cooling area and highest cooling efficiency of condensation, which is the key component of heat exchange with our high-end equipment configuration. Through this step, a large scale of light oil gas will be liquefied into fuel oil and then enters the oil tank. In the operation process, the water will not get touch with the oil directly, which is both contribute to protecting the environment and ensuring the purity of the oil.

Hydroseal System
Hydroseal System
Hydroseal system

Water seal, used for combustible gas-desulfurization, cleaning, and purification, can prevent the corruption of the furnace after burning. It is one of the core technology for us to prolong the service life of the reactor. It is also inevitable to generate combustible gas in the production process. So when the combustible gas passes through the hydroseal, it will be desulfurated and cleaned, and the harmful components will be fully removed. Beyond that, the clean gas will be recycled to the burning room to provide heat, which can save a lot of fuel.

Dedusting system
Dedusting system
Dedusting system

The dedusting system of the Beston waste tyre pyrolysis machine includes four steps: in the spraying tower, the smoke will go through water washing, water spray, ceramic ring adsorption, and activated carbon adsorption. After four filters, the clean smoke can meet EU environmental protection and emission standards.

Draft fan
Draft fan
Draft fan

The draft fan is the hot air circulation power of the heating system. The stainless steel-induced draft fan can bear medium temperature which exceeds 300 Celsius. After the draft fan operates for a short period, we should check the ash binder condition on the impeller blade and clean up in time. If there is any abnormal vibration and noise in processing, the draft fan in operation should be timely checked and processed.

Why choose tire pyrolysis plant fron beston?

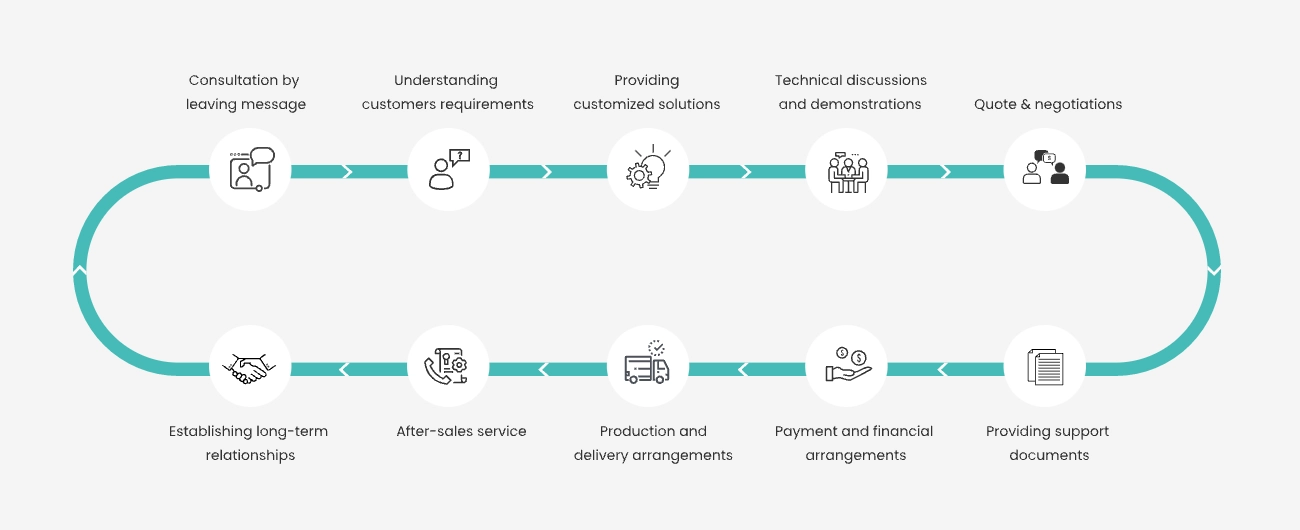

Full life cycle design

We have matching tire oil distillation and purification technology, decolorization and deodorization technology. This can extend the industry chain, improve the value of end products and overall profitability

Integrated control technology

The whole equipment can use PLC (BLL-30 standard) and DCS remote control system, with a high degree of automation. This saves manpower and improves the working environment

Low-carbon and energy saving design

Treated by environmental protection facilities, the combustion exhaust gas meets the emission standards. After treatment of a water cooling system, carbon black can be discharged. This can reduce dust pollution. The machine can make full use of the gas produced by reactor cracking for secondary combustion to reduce energy consumption and related costs.

IoT monitoring technology

Our plastic pyrolysis machine can be equipped with IoT technology. It can realize intelligent data remote transmission and control. This allows customers to monitor and understand the overall operational status of the equipment.

Customized configuration

For special raw materials require customers to send samples, we provide pilot test research and sample preparation paid services. It can meet the diversified product service needs of customers.

Long service life

Our products are built with top-grade materials, crafted using expert welding techniques, and undergo rigorous quality inspections throughout production. This ensures a product lifespan of 5-8 years and offers excellent value for money.

Conclusion

Focusing on constantly researching, developing, updating, and manufacturing waste tyre pyrolysis plant for many years, Beston has been becoming a leader in the waste recycling field. Beston  tyre pyrolysis plants have been exported to 30+ countries and received much praise. Want to improve the environmental quality and create profits? Contact Beston to know more about the tire pyrolysis machine now!
